10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution

  • 1
  • 2

Brand Name : Jingtai

Model Number : JT-10.1IPSWS

Place of Origin : Shenzhen/China

MOQ : 5pcs

Payment Terms : T/T,,L/C,MoneyGram,D/A,D/P

Delivery Time : 1-5 weeks

Certification : ISO9001 / ISO14000

Supply Ability : 2000K pcs per month

Packaging Details : Standard Exportation Package

Key Words : 10.1 Inch IPS WS

Resolution : 1024*600

Display Mode : IPS Full Viewing Angle

Luminance : 250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m²(Typ)

Interface Definition : MIPI/RGB

Touch Screen : CTP

CTP Interface : 12C/RGB

CTP Structure : GFF/GG

Price : 1-20

Contact Now

10.1 Inch IPS WS LCD Display Screen Middle Size
High-performance industrial LCD display with excellent viewing angles and multiple brightness options.
Specification Details
Application Industrial Control
Number of pixels 1024×600 pixels
Active Area 222.72×125.28mm
Module Outline 235×143×2.9mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 800MIN (Typ)
NTSC 50% (Typ)
LCM Brightness 250cd/m² (Typ)
500cd/m² (Typ)
800cd/m² (Typ)
1000cd/m² (Typ)
Interface MIPI/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

10.1-Inch PCAP TFT Display | 1024×600 IPS | RGB/MIPI Interface & LED Backlight

Model: JT-10.1IPSWS

Product Description

The JT-10.1IPSWS is a 10.1-inch high-brightness TFT-LCD module featuring a 1024×600 IPS panel with RGB and MIPI interface and integrated capacitive touch panel (CTP). Utilizing IPS technology, this display offers wide viewing angles of 85°/85°/85°/85° (Left/Right/Up/Down, typical) and delivers a typical brightness of 250 nits. For applications requiring enhanced visibility, the brightness can be customized up to 1000 nits upon request.

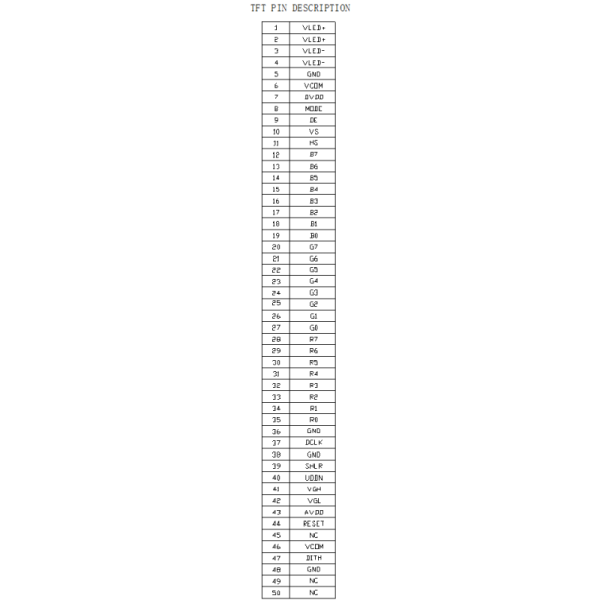

10.1 inch IPS WS TFT 1024*600 LCD Display Product Drawing

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
